Price
Motor (Nominal)
Range
Battery
Technical Architecture
Overview
Price
$1,399
MSRP
Motor
750 W
Nominal Output · 1,400 W peak
Battery
692 Wh
Battery Capacity
Speed
28 mph
Unlocked Top Speed
Payload
330 lbs
Max Load Capacity · bike weighs 79 lbs
Safety Standards
UL 2849 Certified
Electrical System Integrity
UL 2271 Certified
Battery Performance & Safety
Foldable
Yes
Frame style(s): Step-Thru
Score breakdown
50 out of 100 — Worth considering
The arithmetic, in full
Power & Drive4.5 / 16
Battery & Range7.5 / 21
Safety & Braking10.5 / 14
Ride Quality & Components20 / 32
Utility & Practicality4 / 8
Display & Connectivity3.5 / 9
Performance score50 / 100
Value — 50 points ÷ $1,39935.7 pts per $1,000
Show every metric and rung — how each subtotal was earned
Every metric below is a ladder. The bike sits on one rung, and that rung’s points are the points it earns. Add the six category subtotals and you get the score at the top of the page. There is no weighting step, no normalisation and nothing rounded away.
Adding a bike never moves another bike’s score. The score is absolute, not a curve. A bike that earned 62 in January earns 62 in December unless its specification changes or we correct a data error — and we log every correction.
Power & Drive
Peak power output1.5 / 9.5
This bike: 720 W — 600–749 W
Under 600 W0 pts600–749 W1.5 ptsThis bike750–899 W2.5 pts900–1,049 W4 pts1,050–1,199 W5.5 pts1,200–1,349 W7 pts1,350–1,499 W8 pts1,500 W or more9.5 pts
System voltage x controller amperage - the one number that decides acceleration and hill climbing. Scored once, not three times.
Pedal-assist sensing0 / 3.5
This bike: Cadence — Cadence sensor only
Cadence sensor only0 ptsThis bikeTorque sensor3.5 pts
A torque sensor measures how hard you pedal and matches it. Every bike has at least a cadence sensor, so cadence alone earns nothing.
Throttle1 / 1
This bike: Yes — Throttle included
No throttle0 ptsThrottle included1 ptThis bike
Lets you pull away from a stop without pedalling - useful with a load, on a hill, in traffic, or with joint pain.
Speed class2 / 2
This bike: 28 mph — 28 mph (Class 3)
Below 20 mph0 pts20–27 mph (Class 1/2)0.5 pts28 mph (Class 3)2 ptsThis bike
Class 3 bikes (28 mph) keep pace with city traffic. Class 1 and 2 stop assisting at 20 mph.
Battery & Range
Usable battery capacity6 / 12
This bike: 692 Wh — 650–799 Wh
Under 350 Wh0 pts350–499 Wh2 pts500–649 Wh4 pts650–799 Wh6 ptsThis bike800–999 Wh8 pts1,000–1,299 Wh10 pts1,300 Wh or more12 pts
Total watt-hours you can carry, counting a second battery if one is included. Capacity is scored once whether it arrives in one pack or two.
Charger speed1 / 3
This bike: 192 W charger — 150–199 W
Under 100 W0 pts100–149 W0.5 pts150–199 W1 ptThis bike200–249 W2 pts250–349 W2.5 pts350 W or more3 pts
The charger's own output in watts. Scored on the charger alone so that a large battery is not penalised, and so a 36 V high-amp charger cannot pass for a 48 V one.
Cell supplier0 / 2
This bike: China Tier 1 — Not LG, Samsung or Panasonic
Not LG, Samsung or Panasonic0 ptsThis bikeLG, Samsung or Panasonic2 pts
Cells from LG, Samsung or Panasonic publish cycle-life and thermal data. Anything else earns nothing.
Battery ingress protection0.5 / 4
This bike: IPX5
Not published or IPX40 ptsIPX50.5 ptsThis bikeIP65 / IPX62 ptsIPX7 / IP674 pts
The published IP rating of the battery pack - not the bike. IPX5 is a water-jet test only; IP65 adds a dust-tight claim; IPX7 adds immersion.
Safety & Braking
Braking system3 / 6.5
This bike: Hydro 2p — Hydraulic disc, 2-piston
Rim, V-brake, coaster or mechanical disc0 ptsHydraulic disc, 2-piston3 ptsThis bikeHydraulic disc, 4-piston6.5 pts
Mechanical disc is the bare minimum and earns nothing. Hydraulic discs stop harder with less hand effort; a four-piston calliper is more than twice the braking power of a two-piston and over double the price.
Brake hardware2.5 / 2.5
This bike: Shimano RSX — Premium (Magura, Shimano, SRAM, TRP, Hayes)
Unbranded or not published0 ptsTier-2 name brand (Tektro, Star Union)1 ptPremium (Magura, Shimano, SRAM, TRP, Hayes)2.5 ptsThis bike
Whether pads, rotors and callipers can be bought and serviced anywhere. Tektro and Star Union are both serviceable; Magura is better.
Motor cut-off at the brake lever2 / 2
This bike: Yes — Motor cut-off at the brake lever
Throttle fitted, no cut-off at the lever0 ptsMotor cut-off at the brake lever2 ptsThis bikeNo throttle fitted - the failure mode does not apply2 pts
On a throttle bike, squeezing the brake should cut motor power. It is a backstop for a stuck throttle or a controller fault. A bike with no throttle cannot have that failure, so it scores full marks here.
Brake-activated light1.5 / 1.5
This bike: Yes — Brake-activated rear light
No brake light0 ptsBrake-activated rear light1.5 ptsThis bike
A rear light that brightens under braking is the cheapest way to be seen slowing down.
Turn signals1.5 / 1.5
This bike: Yes — Integrated turn signals
No turn signals0 ptsIntegrated turn signals1.5 ptsThis bike
Signal without taking a hand off the bars.
Ride Quality & Components
Suspension11 / 11
This bike: OEM Fork/Horst-Link Rear — Premium fork plus rear suspension
Rigid steel fork0 ptsRigid aluminium or carbon fork0.5 ptsUnbranded suspension fork2.5 ptsName-brand suspension fork (SR Suntour, RST, KKE)6.5 ptsPremium suspension fork (Fox, RockShox, Marzocchi)9 ptsPremium fork plus rear suspension11 ptsThis bike
A rigid steel fork costs about $6 to make; a name-brand suspension fork is $80 or more. The spread reflects that.
Drivetrain2 / 10.5
This bike: 7 (14:28) / Shimano Tourney — 3–7 speed, entry tier
Single-speed chain0 pts3–7 speed, entry tier2 ptsThis bikeSingle-speed belt drive4 pts7–8 speed, mid tier4 pts9+ speed, quality tier7 ptsInternally-geared hub or gearbox with belt10.5 pts
Gear range, shifting quality and maintenance burden on one ladder. An internally-geared hub with a belt is several levels above a single-speed chain and costs roughly eighty times as much.
Tyres0 / 1.5
This bike: OEM — Unbranded or OEM
Unbranded or OEM0 ptsThis bikeValue brand (CST, Chaoyang, Innova)1 ptPremium brand (Maxxis, Schwalbe, Kenda, Continental)1.5 pts
The best available proxy for grip, rolling resistance and puncture resistance. Deliberately kept small - a name-brand tyre is only about $5 more.
Frame finish1.5 / 2
This bike: Smooth — Smooth welds
Basic welds0 ptsSmooth welds1.5 ptsThis bikeGravity-cast or hydroformed2 pts
Weld finish is a visible proxy for frame manufacturing control.
Axle standard2 / 2.5
This bike: Yes — Thru-axle
Bolt-on or nutted axle0 ptsQuick-release axle0.5 ptsThru-axle2 ptsThis bikeThreaded thru-axle2.5 pts
A thru-axle holds the wheel more securely than a quick-release; a threaded thru-axle more securely still.
Stem1.5 / 2
This bike: Adjustable — Tooled adjustable stem
Non-adjustable stem0 ptsTooled adjustable stem1.5 ptsThis bikeQuick-release adjustable stem2 pts
An adjustable stem lets one bike fit several riders. A quick-release adjustable stem costs roughly triple a tooled one.
Pedals1.5 / 2
This bike: Aluminum — Aluminium
Plastic0 ptsSteel0.5 ptsAluminium1.5 ptsThis bikeQuick-release aluminium2 pts
The part most owners replace first. Quick-release aluminium pedals fold the bike into a smaller space and do not snap.
Lock-on grips0.5 / 0.5
This bike: Yes — Lock-on grips
Standard grips0 ptsLock-on grips0.5 ptsThis bike
Lock-on grips do not twist loose or slide off in the wet.
Utility & Practicality
Rack & cargo system2.5 / 4
This bike: Yes / Aluminum — Aluminium rack
No rack included0 ptsSteel rack1.5 ptsAluminium rack2.5 ptsThis bikeAluminium rack with standard accessory interface (MIK/AVS)4 pts
Whether the bike carries anything out of the box, and whether accessories clip to a published standard instead of needing bungee cords.
Fenders & weather protection0.5 / 2.5
This bike: Yes / Plastic — Basic plastic fenders
No fenders0 ptsBasic plastic fenders0.5 ptsThis bikeMetal fenders2 ptsFull-coverage composite fenders2.5 pts
Full-coverage fenders are what make an e-bike usable in the rain. Composite fenders do not rattle, rust or cut.
Kickstand1 / 1.5
This bike: Rigid — Fixed kickstand
No kickstand0 ptsFixed kickstand1 ptThis bikeAdjustable or double-leg kickstand1.5 pts
An adjustable or double-leg stand holds a loaded bike upright.
Display & Connectivity

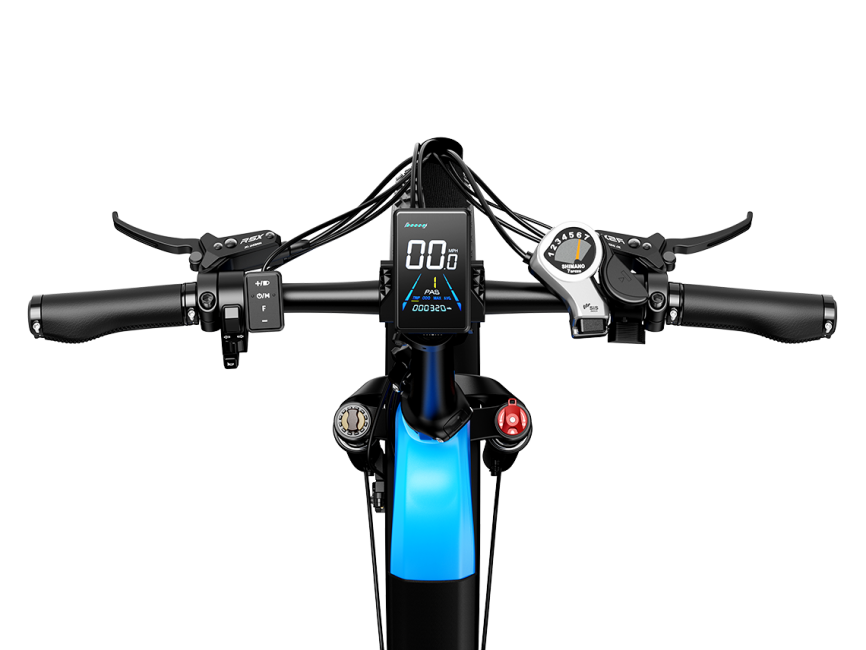

Display1.5 / 6.5
This bike: LCD — Monochrome LCD
LED indicator only0 ptsMonochrome LCD1.5 ptsThis bikeColour LCD or OLED2.5 ptsTFT4.5 ptsTouchscreen TFT6.5 pts
How much you can read at a glance, in sunlight, without stopping. A touchscreen TFT is $40-50 of cost over a colour LCD.
Rider tuning1.5 / 2
This bike: Somewhat — Partial tuning
No rider tuning0 ptsPartial tuning1.5 ptsThis bikeFull rider tuning2 pts
Whether you can change how the bike delivers power, or only how much.
App connectivity0.5 / 0.5
This bike: Yes — App connectivity
No app0 ptsApp connectivity0.5 ptsThis bike
Useful for firmware updates and diagnostics. Nice to have, but most riders do not use it.
Features we show but do not score
0 points — useful to know, not evidence of quality—Quick-release pedals✓Lock-on grips—Tyre sealant fitted—Plastic-free packaging—Second battery included✓Foldable frame
These are real, checkable facts about the bike, and buyers ask about them. None of them predicts whether the bike is good, so none of them moves the score. Quick-release pedals are convenient; they are not a quarter of a braking system.
Editorial Insights
Key Benefits & Drawbacks
Reasons to Buy
- Ergonomic upright geometry minimizes back and neck strain.
- Comes fully equipped with fenders, racks, and integrated lighting.
- Puncture-resistant tires offer peace of mind on debris-filled streets.
Reasons to Avoid
- Standardized geometry doesn't excel at off-road or high-speed performance.
- Can feel sluggish compared to lightweight, fitness-oriented e-bikes.
Expert Verdict
In-Depth Analysis
Editorial Review: Evaluating theHorizon

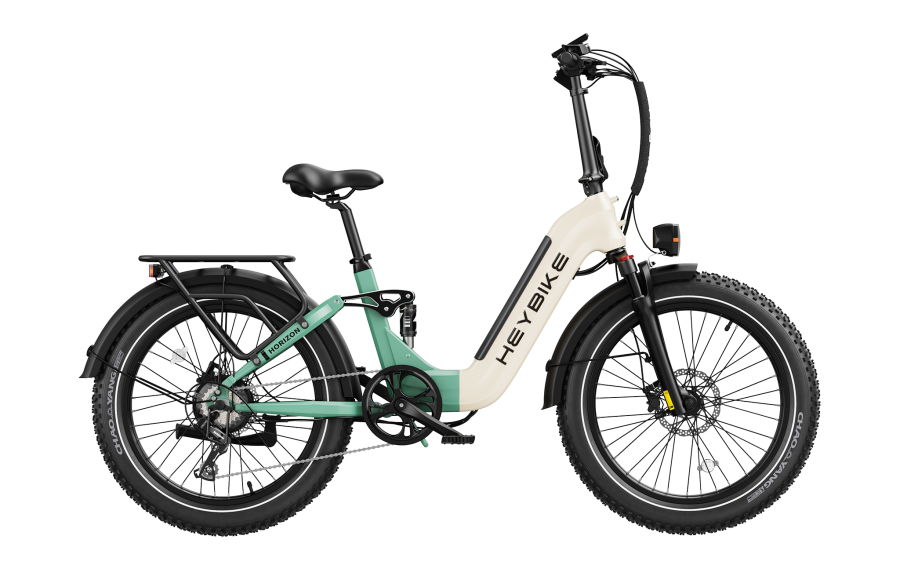

The Heybike Horizon is a bit of a "unicorn" in the e-bike world. While most folding e-bikes compromise on wheel size or completely ditch rear shocks to save space, the Horizon flips the script. It is a full-suspension, folding step-through cruiser that rolls on unique 24x4.0-inch fat tires—climbing right out of the standard 20-inch "pocket folder" class into a much more stable, full-sized riding stance.
Instantly recognizable by its striking, vibrant gradient paint jobs (like the Sunset and Pearl colorways), the Horizon is designed for RVers, commuters, or garage-space savers who want the plush, trail-smoothing ride of a dual-suspension fat bike but still need the luxury of a collapsible frame.
The Technical Snapshot
- Power & Grunt: Driven by a punchy 750W nominal rear hub motor that peaks at a wild 1400W and cranks out 80Nm of torque. It uses a standard 5-level cadence sensor that delivers snappy, aggressive off-the-line acceleration to confidently tackle steep neighborhood hills.

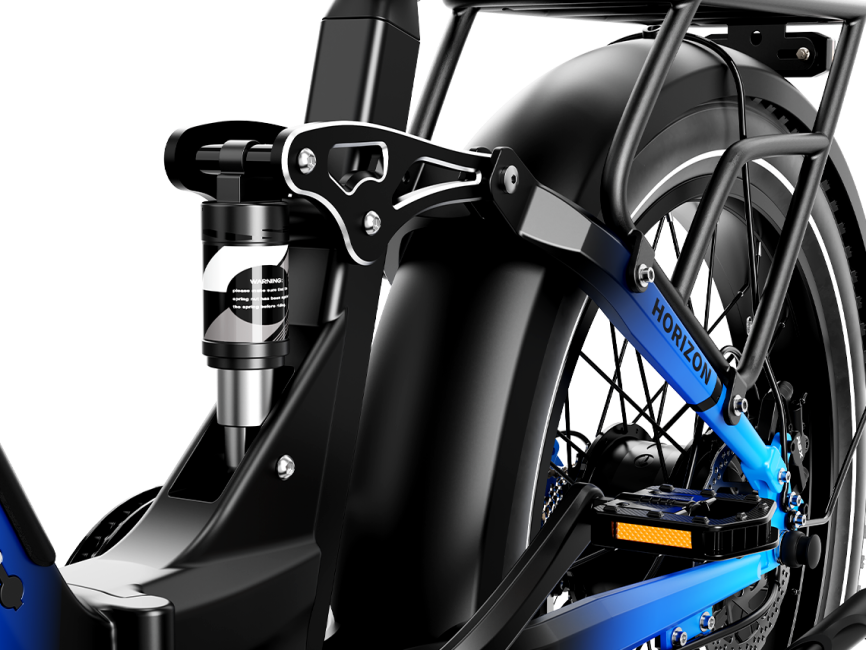

- True Full Suspension: Delivers an incredibly soft, couch-like ride by pairing an adjustable hydraulic front suspension fork (with mechanical lockout) with a Horst-link rear suspension system. Combined with the massive air cushion of the tires, it completely irons out potholes and gravel paths.
- Speed & App Customization: Ships as a Class 2/3 hybrid capping assist at 28 mph, but can be fully unlocked via the Heybike smartphone app to hit top speeds of 30 mph on pure throttle. The Bluetooth app also allows you to map out custom power curves for each pedal assist level.
- The 24-Inch Fat Tire Stance: Moves away from small 20-inch wheels in favor of 24x4.0-inch Chao Yang fat tires. This hybrid size offers much better rollover capacity and pavement stability than a standard compact folder, without feeling as massive or unwieldy as a 26-inch fat bike.
- Battery & Real-World Range: Houses a removable, lockable 48V 14.4Ah (692Wh) UL-certified battery. While Heybike claims a maximum 55-mile range under perfect conditions, its heavy build means you will realistically net 25 to 35 miles under heavy real-world throttle and assist use.

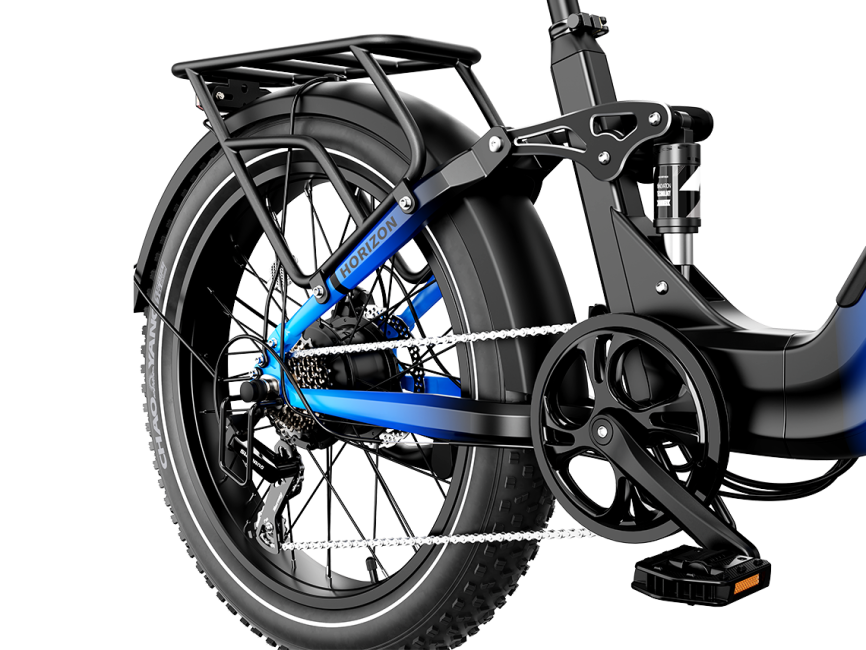

- Brakes & Gearing: Stopped predictably by hydraulic disc brakes paired with 180mm rotors for reliable, light-touch stopping leverage. Mechanical pedaling is managed through a budget-friendly 7-speed Shimano Tourney drivetrain.

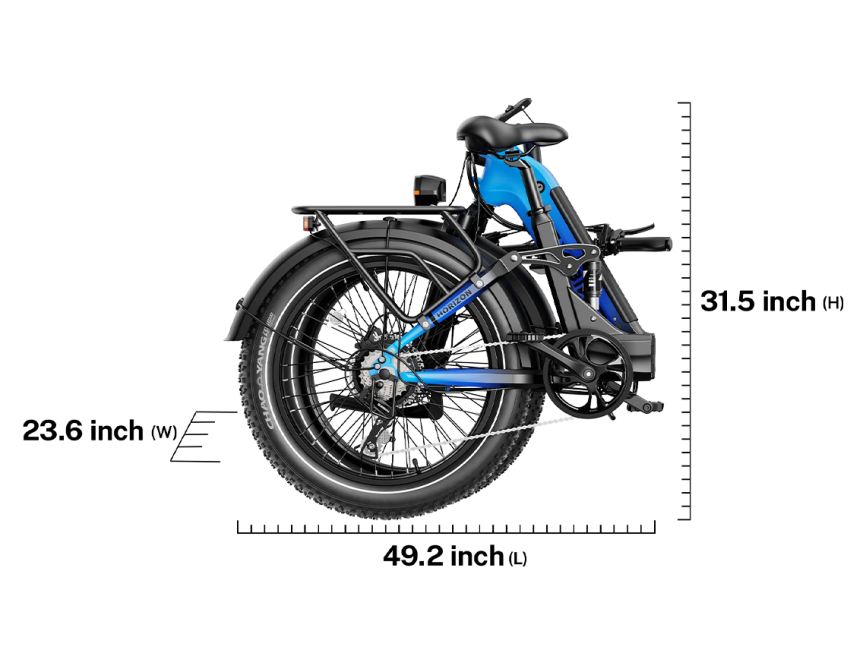

- Heavy-Duty Folding Geometry: Built on a robust 6061 aluminum frame with an open, accessible step-through design. Because of the dual-suspension linkages and massive wheels, it is quite heavy—scaling in at 79.4 pounds. It features a 330-pound total capacity and is ergonomically optimized to fit riders from 5'5" to 6'3".
- The Full Commuter Package: Arrives standard with front and rear full-coverage fenders, a heavy-duty integrated rear rack, an electronic horn, a high-output headlight, and integrated front and rear turn signals tied directly into an active rear brake light.
Key Specifications
Horizon
Performance
- Motor (Nominal)
- 750 W
- Motor (Peak)
- 1,400 W
- Battery
- 692 Wh
- Battery (Ah)
- 14.4 Ah
- Range
- 55 mi
- Top Speed
- 28 mph
Practicality
- Price
- $1,399
- Weight
- 79 lbs
- Payload Capacity
- 330 lbs
- Foldable
- Yes
Real-World Range Estimator
Fine-tuned for the 692 Wh Battery
34.6 mi
Motor Type
Terrain Profile
The Science of eBike Range
Estimated range is total usable battery capacity divided by adjusted energy consumption: Range (mi) = Battery (Wh) ÷ Adjusted Consumption (Wh/mi). Manufacturer range claims are measured in ideal lab conditions, so this model starts from a real-world baseline and applies a multiplier for each factor you change above.
The variables
- Baseline: 20 Wh per mile, for a 180 lb rider on flat ground using standard assist with a hub motor. Every adjustment below is a multiplier against that number.
- PAS level: assist is banded rather than linear, because a controller delivers set power steps rather than a smooth ramp. Levels 1–2 draw 30% less energy than standard, level 4 draws 30% more, and level 5 draws 60% more — the jump at the top is steep because aerodynamic drag rises with the square of speed.
- Motor type: mid-drive motors run through the gearing, so they hold a more efficient operating range under load and consume roughly 14% less energy than a hub motor over the same route. Hub motors lose more to heat when they bog down on climbs.
- Rider weight: consumption rises 5% for every full 20 lbs over the 180 lb baseline, reflecting the extra rolling resistance and the energy lost accelerating more mass back up to speed.
- Terrain: a hilly profile adds 30% over flat ground. Regenerative braking recovers very little of what a climb costs, so elevation is close to a straight energy penalty.
This estimate is independent of the Battery & Range score in the rating breakdown, which scores the published specification rather than predicting a single ride. Treat the figure as a planning guide — tyre pressure, wind, temperature and stop-start riding all move the real number.
