Price
Motor (Nominal)
Range
Battery
Technical Architecture
Overview
Price
$1,698
MSRP
Motor
500 W
Nominal Output · 750 W peak
Battery
500 Wh
Battery Capacity
Speed
20 mph
Unlocked Top Speed
Payload
220 lbs
Max Load Capacity · bike weighs 65 lbs
Safety Standards
UL 2849 Certified
Electrical System Integrity
UL 2271 Certified
Battery Performance & Safety
Foldable
No
Frame style(s): High-Step
Score breakdown
26.5 out of 100 — Not recommended
Data notice. UNVERIFIED SPEC: Controller Power
The arithmetic, in full
Power & Drive3 / 16
Battery & Range9 / 21
Safety & Braking5 / 14
Ride Quality & Components7 / 32
Utility & Practicality1 / 8
Display & Connectivity1.5 / 9
Performance score26.5 / 100
Value — 26.5 points ÷ $1,69815.6 pts per $1,000
Show every metric and rung — how each subtotal was earned
Every metric below is a ladder. The bike sits on one rung, and that rung’s points are the points it earns. Add the six category subtotals and you get the score at the top of the page. There is no weighting step, no normalisation and nothing rounded away.
Adding a bike never moves another bike’s score. The score is absolute, not a curve. A bike that earned 62 in January earns 62 in December unless its specification changes or we correct a data error — and we log every correction.
Power & Drive
Peak power output1.5 / 9.5
This bike: 720 W — 600–749 W
Under 600 W0 pts600–749 W1.5 ptsThis bike750–899 W2.5 pts900–1,049 W4 pts1,050–1,199 W5.5 pts1,200–1,349 W7 pts1,350–1,499 W8 pts1,500 W or more9.5 pts
System voltage x controller amperage - the one number that decides acceleration and hill climbing. Scored once, not three times.
Pedal-assist sensing0 / 3.5
This bike: Cadence — Cadence sensor only
Cadence sensor only0 ptsThis bikeTorque sensor3.5 pts
A torque sensor measures how hard you pedal and matches it. Every bike has at least a cadence sensor, so cadence alone earns nothing.
Throttle1 / 1
This bike: Yes — Throttle included
No throttle0 ptsThrottle included1 ptThis bike
Lets you pull away from a stop without pedalling - useful with a load, on a hill, in traffic, or with joint pain.
Speed class0.5 / 2
This bike: 20 mph — 20–27 mph (Class 1/2)
Below 20 mph0 pts20–27 mph (Class 1/2)0.5 ptsThis bike28 mph (Class 3)2 pts
Class 3 bikes (28 mph) keep pace with city traffic. Class 1 and 2 stop assisting at 20 mph.
Battery & Range
Usable battery capacity8 / 12
This bike: 998 Wh (2 packs) — 800–999 Wh
Under 350 Wh0 pts350–499 Wh2 pts500–649 Wh4 pts650–799 Wh6 pts800–999 Wh8 ptsThis bike1,000–1,299 Wh10 pts1,300 Wh or more12 pts
Total watt-hours you can carry, counting a second battery if one is included. Capacity is scored once whether it arrives in one pack or two.
Charger speed1 / 3
This bike: 192 W charger — 150–199 W
Under 100 W0 pts100–149 W0.5 pts150–199 W1 ptThis bike200–249 W2 pts250–349 W2.5 pts350 W or more3 pts
The charger's own output in watts. Scored on the charger alone so that a large battery is not penalised, and so a 36 V high-amp charger cannot pass for a 48 V one.
Cell supplier0 / 2
This bike: China Tier 1 — Not LG, Samsung or Panasonic
Not LG, Samsung or Panasonic0 ptsThis bikeLG, Samsung or Panasonic2 pts
Cells from LG, Samsung or Panasonic publish cycle-life and thermal data. Anything else earns nothing.
Battery ingress protection0 / 4
This bike: IPX4 — Not published or IPX4
Not published or IPX40 ptsThis bikeIPX50.5 ptsIP65 / IPX62 ptsIPX7 / IP674 pts
The published IP rating of the battery pack - not the bike. IPX5 is a water-jet test only; IP65 adds a dust-tight claim; IPX7 adds immersion.
Safety & Braking
Braking system3 / 6.5
This bike: Hydro 2p — Hydraulic disc, 2-piston
Rim, V-brake, coaster or mechanical disc0 ptsHydraulic disc, 2-piston3 ptsThis bikeHydraulic disc, 4-piston6.5 pts
Mechanical disc is the bare minimum and earns nothing. Hydraulic discs stop harder with less hand effort; a four-piston calliper is more than twice the braking power of a two-piston and over double the price.
Brake hardware0 / 2.5
This bike: OEM — Unbranded or not published
Unbranded or not published0 ptsThis bikeTier-2 name brand (Tektro, Star Union)1 ptPremium (Magura, Shimano, SRAM, TRP, Hayes)2.5 pts
Whether pads, rotors and callipers can be bought and serviced anywhere. Tektro and Star Union are both serviceable; Magura is better.
Motor cut-off at the brake lever2 / 2
This bike: Yes — Motor cut-off at the brake lever
Throttle fitted, no cut-off at the lever0 ptsMotor cut-off at the brake lever2 ptsThis bikeNo throttle fitted - the failure mode does not apply2 pts
On a throttle bike, squeezing the brake should cut motor power. It is a backstop for a stuck throttle or a controller fault. A bike with no throttle cannot have that failure, so it scores full marks here.
Brake-activated light0 / 1.5
This bike: No — No brake light
No brake light0 ptsThis bikeBrake-activated rear light1.5 pts
A rear light that brightens under braking is the cheapest way to be seen slowing down.
Turn signals0 / 1.5
This bike: No — No turn signals
No turn signals0 ptsThis bikeIntegrated turn signals1.5 pts
Signal without taking a hand off the bars.
Ride Quality & Components
Suspension2.5 / 11
This bike: OEM — Unbranded suspension fork
Rigid steel fork0 ptsRigid aluminium or carbon fork0.5 ptsUnbranded suspension fork2.5 ptsThis bikeName-brand suspension fork (SR Suntour, RST, KKE)6.5 ptsPremium suspension fork (Fox, RockShox, Marzocchi)9 ptsPremium fork plus rear suspension11 pts
A rigid steel fork costs about $6 to make; a name-brand suspension fork is $80 or more. The spread reflects that.
Drivetrain0 / 10.5
This bike: Single / N/A — Single-speed chain
Single-speed chain0 ptsThis bike3–7 speed, entry tier2 ptsSingle-speed belt drive4 pts7–8 speed, mid tier4 pts9+ speed, quality tier7 ptsInternally-geared hub or gearbox with belt10.5 pts
Gear range, shifting quality and maintenance burden on one ladder. An internally-geared hub with a belt is several levels above a single-speed chain and costs roughly eighty times as much.
Tyres0 / 1.5
This bike: OEM — Unbranded or OEM
Unbranded or OEM0 ptsThis bikeValue brand (CST, Chaoyang, Innova)1 ptPremium brand (Maxxis, Schwalbe, Kenda, Continental)1.5 pts
The best available proxy for grip, rolling resistance and puncture resistance. Deliberately kept small - a name-brand tyre is only about $5 more.
Frame finish1.5 / 2
This bike: Smooth — Smooth welds
Basic welds0 ptsSmooth welds1.5 ptsThis bikeGravity-cast or hydroformed2 pts
Weld finish is a visible proxy for frame manufacturing control.
Axle standard2 / 2.5
This bike: Yes — Thru-axle
Bolt-on or nutted axle0 ptsQuick-release axle0.5 ptsThru-axle2 ptsThis bikeThreaded thru-axle2.5 pts
A thru-axle holds the wheel more securely than a quick-release; a threaded thru-axle more securely still.
Stem0 / 2
This bike: Rigid — Non-adjustable stem
Non-adjustable stem0 ptsThis bikeTooled adjustable stem1.5 ptsQuick-release adjustable stem2 pts
An adjustable stem lets one bike fit several riders. A quick-release adjustable stem costs roughly triple a tooled one.
Pedals0.5 / 2
This bike: Steel
Plastic0 ptsSteel0.5 ptsThis bikeAluminium1.5 ptsQuick-release aluminium2 pts
The part most owners replace first. Quick-release aluminium pedals fold the bike into a smaller space and do not snap.
Lock-on grips0.5 / 0.5
This bike: Yes — Lock-on grips
Standard grips0 ptsLock-on grips0.5 ptsThis bike
Lock-on grips do not twist loose or slide off in the wet.
Utility & Practicality
Rack & cargo system0 / 4
This bike: No / N/A — No rack included
No rack included0 ptsThis bikeSteel rack1.5 ptsAluminium rack2.5 ptsAluminium rack with standard accessory interface (MIK/AVS)4 pts
Whether the bike carries anything out of the box, and whether accessories clip to a published standard instead of needing bungee cords.
Fenders & weather protection0 / 2.5
This bike: No / N/A — No fenders
No fenders0 ptsThis bikeBasic plastic fenders0.5 ptsMetal fenders2 ptsFull-coverage composite fenders2.5 pts
Full-coverage fenders are what make an e-bike usable in the rain. Composite fenders do not rattle, rust or cut.
Kickstand1 / 1.5
This bike: Rigid — Fixed kickstand
No kickstand0 ptsFixed kickstand1 ptThis bikeAdjustable or double-leg kickstand1.5 pts
An adjustable or double-leg stand holds a loaded bike upright.
Display & Connectivity
Display1.5 / 6.5
This bike: LCD — Monochrome LCD
LED indicator only0 ptsMonochrome LCD1.5 ptsThis bikeColour LCD or OLED2.5 ptsTFT4.5 ptsTouchscreen TFT6.5 pts
How much you can read at a glance, in sunlight, without stopping. A touchscreen TFT is $40-50 of cost over a colour LCD.
Rider tuning0 / 2
This bike: No — No rider tuning
No rider tuning0 ptsThis bikePartial tuning1.5 ptsFull rider tuning2 pts
Whether you can change how the bike delivers power, or only how much.
App connectivity0 / 0.5
This bike: No — No app
No app0 ptsThis bikeApp connectivity0.5 pts
Useful for firmware updates and diagnostics. Nice to have, but most riders do not use it.
Features we show but do not score
0 points — useful to know, not evidence of quality—Quick-release pedals✓Lock-on grips—Tyre sealant fitted—Plastic-free packaging✓Second battery included—Foldable frame
These are real, checkable facts about the bike, and buyers ask about them. None of them predicts whether the bike is good, so none of them moves the score. Quick-release pedals are convenient; they are not a quarter of a braking system.
Editorial Insights
Key Benefits & Drawbacks
Reasons to Buy
- Bold, moto-inspired design appeals heavily to younger demographics.
- Long bench seat allows for changing riding positions or carrying a passenger.
- Dual-battery options provide massive range for exploring the city.
Reasons to Avoid
- Fixed seat height prevents proper leg extension for efficient pedaling.
- Heavy construction makes lifting the bike difficult.
Expert Verdict
In-Depth Analysis
Editorial Review: Evaluating theX1S Dual

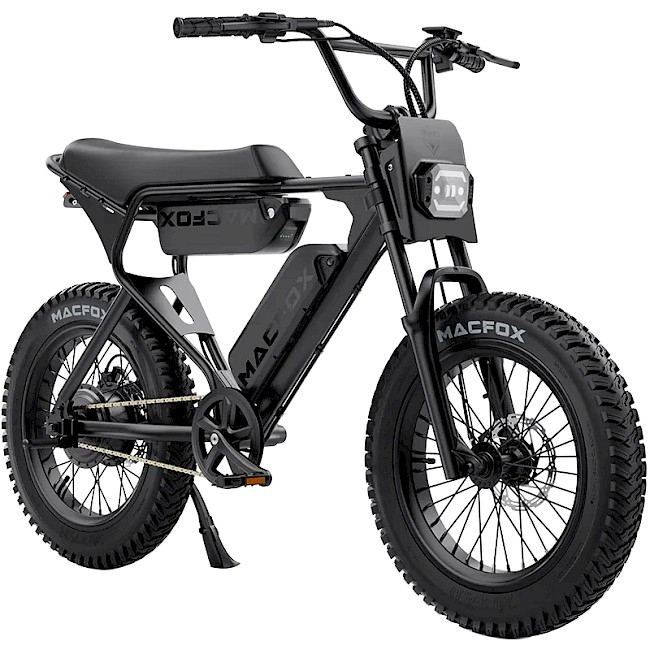

The Macfox X1S Dual Battery model takes Macfox's incredibly popular, light-moped style neighborhood cruiser and pairs it with a massive capacity upgrade. The base X1S is loved for its light weight and nimble handling, but running an electric moped with thick 4-inch fat tires purely on throttle will chew through a single battery quickly.
By adding a second factory-matched battery pack, Macfox doubles the "fuel tank." This setup transforms a basic campus commuter into an all-day neighborhood brawler that completely eliminates range anxiety, allowing you to lean heavily on the twist throttle without fear of getting stranded.
The Technical Snapshot
- The Dual-Battery Capacity Upgrade: Links two removable, lockable 48V 10.4Ah packs to create a massive 998.4Wh (effectively 20.8Ah) dual-energy ecosystem. This intelligent management system effectively doubles your riding distance, expanding the manufacturer's range from 38 miles up to a substantial 76 miles (expect a highly realistic 40 to 45 miles of range if you are cruising full-throttle on Pedal Assist 3).
- Power & Twist-and-Go Performance: Driven by a snappy 500W nominal rear hub motor that peaks out at 750W and kicks out 65Nm of torque. Because it utilizes a single-speed mechanical drivetrain (no derailleur or shifters), there are no delicate mechanical gears to strip, skip, or smash when riding hard.
- Speed & Unlocking: Operates natively as a street-legal Class 2 bike capping at 20 mph, but can easily be unlocked via the backlit LCD screen dashboard to hit top speeds of 25 mph via the right-hand twist-throttle or 3 pedal assist levels.
- Compact Fat-Tire Stance: Rolls on high-volume, multi-surface 20x4.0-inch fat tires that cushion road vibration and provide stable grip across loose sand, gravel, and asphalt. A mechanical front suspension fork absorbs curb drops and pothole impacts.
- Brakes & Physical Build: Relying on a rigid, high-carbon steel chassis, it weighs a relatively light 72 pounds even with both batteries installed (gaining roughly 7 lbs over the single-battery version). Stopping power is handled by standard cable-actuated mechanical disc brakes clamping onto 160mm rotors.
- Fixed Moped Ergonomics: Features a classic 24-inch elongated motorcycle bench seat made of comfortable PU memory foam, locked at a fixed 33-inch seat height. It supports a total payload of 300 pounds (220-lb maximum single rider limit) and fits riders best from 5'3" to 5'11".
Single vs. Dual Battery Breakdown
| Feature Metric | Single Battery X1S | Dual Battery X1S |
| Total Battery Capacity | 500Wh (48V 10.4Ah) | 998.4Wh (Two 48V 10.4Ah packs) |
| Claimed Max Range | 25 to 38 miles | 50 to 76 miles |
| Realistic Throttle Range | ~20 to 25 miles | ~40 to 45 miles |
| Approximate Bike Weight | ~65 lbs | ~72 lbs |
A Quick Buyer's Note on Retrofitting: If you buy the single-battery model now and decide to upgrade later, Macfox sells the official Dual Battery Upgrade Kit separately for $449. Just make sure to double-check your bike's connector block, as the upgrade kits come in 4-pin and 5-pin controller variations that are strictly not interchangeable.
Key Specifications
X1S Dual
Performance
- Motor (Nominal)
- 500 W
- Motor (Peak)
- 750 W
- Battery
- 500 Wh
- Battery (Ah)
- 10.4 Ah
- Range
- 56 mi
- Top Speed
- 20 mph
Practicality
- Price
- $1,698
- Weight
- 65 lbs
- Payload Capacity
- 220 lbs
- Foldable
- No
Real-World Range Estimator
Fine-tuned for the 500 Wh Battery
25 mi
Motor Type
Terrain Profile
The Science of eBike Range
Estimated range is total usable battery capacity divided by adjusted energy consumption: Range (mi) = Battery (Wh) ÷ Adjusted Consumption (Wh/mi). Manufacturer range claims are measured in ideal lab conditions, so this model starts from a real-world baseline and applies a multiplier for each factor you change above.
The variables
- Baseline: 20 Wh per mile, for a 180 lb rider on flat ground using standard assist with a hub motor. Every adjustment below is a multiplier against that number.
- PAS level: assist is banded rather than linear, because a controller delivers set power steps rather than a smooth ramp. Levels 1–2 draw 30% less energy than standard, level 4 draws 30% more, and level 5 draws 60% more — the jump at the top is steep because aerodynamic drag rises with the square of speed.
- Motor type: mid-drive motors run through the gearing, so they hold a more efficient operating range under load and consume roughly 14% less energy than a hub motor over the same route. Hub motors lose more to heat when they bog down on climbs.
- Rider weight: consumption rises 5% for every full 20 lbs over the 180 lb baseline, reflecting the extra rolling resistance and the energy lost accelerating more mass back up to speed.
- Terrain: a hilly profile adds 30% over flat ground. Regenerative braking recovers very little of what a climb costs, so elevation is close to a straight energy penalty.
This estimate is independent of the Battery & Range score in the rating breakdown, which scores the published specification rather than predicting a single ride. Treat the figure as a planning guide — tyre pressure, wind, temperature and stop-start riding all move the real number.
