Price
Motor (Nominal)
Range
Battery
Technical Architecture
Overview
Price
$2,195
MSRP
Motor
250 W
Nominal Output · 540 W peak
Battery
252 Wh
Battery Capacity
Speed
28 mph
Unlocked Top Speed
Payload
225 lbs
Max Load Capacity · bike weighs 29 lbs
Safety Standards
UL 2849 Certified
Electrical System Integrity
UL 2271 Certified
Battery Performance & Safety
Foldable
No
Frame style(s): High-Step
Score breakdown
34 out of 100 — Not recommended
Data notice. UNVERIFIED SPEC: Battery ingress rating · MISSING DATA: Battery & Range / Battery ingress protection
The arithmetic, in full
Power & Drive3 / 16
Battery & Range2 / 21
Safety & Braking9 / 14
Ride Quality & Components14.5 / 32
Utility & Practicality1 / 8
Display & Connectivity4.5 / 9
Performance score34 / 100
Value — 34 points ÷ $2,19515.5 pts per $1,000
Show every metric and rung — how each subtotal was earned
Every metric below is a ladder. The bike sits on one rung, and that rung’s points are the points it earns. Add the six category subtotals and you get the score at the top of the page. There is no weighting step, no normalisation and nothing rounded away.
Adding a bike never moves another bike’s score. The score is absolute, not a curve. A bike that earned 62 in January earns 62 in December unless its specification changes or we correct a data error — and we log every correction.
Power & Drive
Peak power output0 / 9.5
This bike: 540 W — Under 600 W
Under 600 W0 ptsThis bike600–749 W1.5 pts750–899 W2.5 pts900–1,049 W4 pts1,050–1,199 W5.5 pts1,200–1,349 W7 pts1,350–1,499 W8 pts1,500 W or more9.5 pts
System voltage x controller amperage - the one number that decides acceleration and hill climbing. Scored once, not three times.
Pedal-assist sensing0 / 3.5
This bike: Cadence — Cadence sensor only
Cadence sensor only0 ptsThis bikeTorque sensor3.5 pts
A torque sensor measures how hard you pedal and matches it. Every bike has at least a cadence sensor, so cadence alone earns nothing.
Throttle1 / 1
This bike: Yes — Throttle included
No throttle0 ptsThrottle included1 ptThis bike
Lets you pull away from a stop without pedalling - useful with a load, on a hill, in traffic, or with joint pain.
Speed class2 / 2
This bike: 28 mph — 28 mph (Class 3)
Below 20 mph0 pts20–27 mph (Class 1/2)0.5 pts28 mph (Class 3)2 ptsThis bike
Class 3 bikes (28 mph) keep pace with city traffic. Class 1 and 2 stop assisting at 20 mph.
Battery & Range
Usable battery capacity0 / 12
This bike: 252 Wh — Under 350 Wh
Under 350 Wh0 ptsThis bike350–499 Wh2 pts500–649 Wh4 pts650–799 Wh6 pts800–999 Wh8 pts1,000–1,299 Wh10 pts1,300 Wh or more12 pts
Total watt-hours you can carry, counting a second battery if one is included. Capacity is scored once whether it arrives in one pack or two.
Charger speed0 / 3
This bike: 96 W charger — Under 100 W
Under 100 W0 ptsThis bike100–149 W0.5 pts150–199 W1 pt200–249 W2 pts250–349 W2.5 pts350 W or more3 pts
The charger's own output in watts. Scored on the charger alone so that a large battery is not penalised, and so a 36 V high-amp charger cannot pass for a 48 V one.
Cell supplier2 / 2
This bike: Samsung — LG, Samsung or Panasonic
Not LG, Samsung or Panasonic0 ptsLG, Samsung or Panasonic2 ptsThis bike
Cells from LG, Samsung or Panasonic publish cycle-life and thermal data. Anything else earns nothing.
Battery ingress protection0 / 4
This bike: not published by the manufacturer
The manufacturer does not publish this specification, so the bike scores zero here. We do not guess, and we do not quietly skip the metric — that would let an unpublished spec look like a strong one.
The published IP rating of the battery pack - not the bike. IPX5 is a water-jet test only; IP65 adds a dust-tight claim; IPX7 adds immersion.
Safety & Braking
Braking system3 / 6.5
This bike: Hydro 2p — Hydraulic disc, 2-piston
Rim, V-brake, coaster or mechanical disc0 ptsHydraulic disc, 2-piston3 ptsThis bikeHydraulic disc, 4-piston6.5 pts
Mechanical disc is the bare minimum and earns nothing. Hydraulic discs stop harder with less hand effort; a four-piston calliper is more than twice the braking power of a two-piston and over double the price.
Brake hardware2.5 / 2.5
This bike: SRAM Apex — Premium (Magura, Shimano, SRAM, TRP, Hayes)
Unbranded or not published0 ptsTier-2 name brand (Tektro, Star Union)1 ptPremium (Magura, Shimano, SRAM, TRP, Hayes)2.5 ptsThis bike
Whether pads, rotors and callipers can be bought and serviced anywhere. Tektro and Star Union are both serviceable; Magura is better.
Motor cut-off at the brake lever2 / 2
This bike: Yes — Motor cut-off at the brake lever
Throttle fitted, no cut-off at the lever0 ptsMotor cut-off at the brake lever2 ptsThis bikeNo throttle fitted - the failure mode does not apply2 pts
On a throttle bike, squeezing the brake should cut motor power. It is a backstop for a stuck throttle or a controller fault. A bike with no throttle cannot have that failure, so it scores full marks here.
Brake-activated light1.5 / 1.5
This bike: Yes — Brake-activated rear light
No brake light0 ptsBrake-activated rear light1.5 ptsThis bike
A rear light that brightens under braking is the cheapest way to be seen slowing down.
Turn signals0 / 1.5
This bike: No — No turn signals
No turn signals0 ptsThis bikeIntegrated turn signals1.5 pts
Signal without taking a hand off the bars.
Ride Quality & Components
Suspension0.5 / 11
This bike: Rigid Aluminum — Rigid aluminium or carbon fork
Rigid steel fork0 ptsRigid aluminium or carbon fork0.5 ptsThis bikeUnbranded suspension fork2.5 ptsName-brand suspension fork (SR Suntour, RST, KKE)6.5 ptsPremium suspension fork (Fox, RockShox, Marzocchi)9 ptsPremium fork plus rear suspension11 pts
A rigid steel fork costs about $6 to make; a name-brand suspension fork is $80 or more. The spread reflects that.
Drivetrain7 / 10.5
This bike: 12 (11:42) / SRAM Apex — 9+ speed, quality tier
Single-speed chain0 pts3–7 speed, entry tier2 ptsSingle-speed belt drive4 pts7–8 speed, mid tier4 pts9+ speed, quality tier7 ptsThis bikeInternally-geared hub or gearbox with belt10.5 pts
Gear range, shifting quality and maintenance burden on one ladder. An internally-geared hub with a belt is several levels above a single-speed chain and costs roughly eighty times as much.
Tyres1.5 / 1.5
This bike: Schwalbe — Premium brand (Maxxis, Schwalbe, Kenda, Continental)
Unbranded or OEM0 ptsValue brand (CST, Chaoyang, Innova)1 ptPremium brand (Maxxis, Schwalbe, Kenda, Continental)1.5 ptsThis bike
The best available proxy for grip, rolling resistance and puncture resistance. Deliberately kept small - a name-brand tyre is only about $5 more.
Frame finish1.5 / 2
This bike: Smooth — Smooth welds
Basic welds0 ptsSmooth welds1.5 ptsThis bikeGravity-cast or hydroformed2 pts
Weld finish is a visible proxy for frame manufacturing control.
Axle standard2 / 2.5
This bike: Yes — Thru-axle
Bolt-on or nutted axle0 ptsQuick-release axle0.5 ptsThru-axle2 ptsThis bikeThreaded thru-axle2.5 pts
A thru-axle holds the wheel more securely than a quick-release; a threaded thru-axle more securely still.
Stem0 / 2
This bike: Rigid — Non-adjustable stem
Non-adjustable stem0 ptsThis bikeTooled adjustable stem1.5 ptsQuick-release adjustable stem2 pts
An adjustable stem lets one bike fit several riders. A quick-release adjustable stem costs roughly triple a tooled one.
Pedals1.5 / 2
This bike: Alloy — Aluminium
Plastic0 ptsSteel0.5 ptsAluminium1.5 ptsThis bikeQuick-release aluminium2 pts
The part most owners replace first. Quick-release aluminium pedals fold the bike into a smaller space and do not snap.
Lock-on grips0.5 / 0.5
This bike: Yes — Lock-on grips
Standard grips0 ptsLock-on grips0.5 ptsThis bike
Lock-on grips do not twist loose or slide off in the wet.
Utility & Practicality
Rack & cargo system0 / 4
This bike: No / N/A — No rack included
No rack included0 ptsThis bikeSteel rack1.5 ptsAluminium rack2.5 ptsAluminium rack with standard accessory interface (MIK/AVS)4 pts
Whether the bike carries anything out of the box, and whether accessories clip to a published standard instead of needing bungee cords.
Fenders & weather protection0 / 2.5
This bike: No / N/A — No fenders
No fenders0 ptsThis bikeBasic plastic fenders0.5 ptsMetal fenders2 ptsFull-coverage composite fenders2.5 pts
Full-coverage fenders are what make an e-bike usable in the rain. Composite fenders do not rattle, rust or cut.
Kickstand1 / 1.5
This bike: Rigid — Fixed kickstand
No kickstand0 ptsFixed kickstand1 ptThis bikeAdjustable or double-leg kickstand1.5 pts
An adjustable or double-leg stand holds a loaded bike upright.
Display & Connectivity
Display2.5 / 6.5
This bike: Color LCD — Colour LCD or OLED
LED indicator only0 ptsMonochrome LCD1.5 ptsColour LCD or OLED2.5 ptsThis bikeTFT4.5 ptsTouchscreen TFT6.5 pts
How much you can read at a glance, in sunlight, without stopping. A touchscreen TFT is $40-50 of cost over a colour LCD.
Rider tuning1.5 / 2
This bike: Somewhat — Partial tuning
No rider tuning0 ptsPartial tuning1.5 ptsThis bikeFull rider tuning2 pts
Whether you can change how the bike delivers power, or only how much.
App connectivity0.5 / 0.5
This bike: Yes — App connectivity
No app0 ptsApp connectivity0.5 ptsThis bike
Useful for firmware updates and diagnostics. Nice to have, but most riders do not use it.
Features we show but do not score
0 points — useful to know, not evidence of quality—Quick-release pedals✓Lock-on grips—Tyre sealant fitted—Plastic-free packaging—Second battery included—Foldable frame
These are real, checkable facts about the bike, and buyers ask about them. None of them predicts whether the bike is good, so none of them moves the score. Quick-release pedals are convenient; they are not a quarter of a braking system.
Editorial Insights
Key Benefits & Drawbacks
Reasons to Buy
- Full carbon fiber frame drops the weight to an incredible 28 lbs.
- Drop bars and road geometry offer an authentic performance cycling experience.
- Hidden motor provides a seamless, drag-free boost on climbs.
Reasons to Avoid
- Rigid carbon frame and skinny tires transfer a lot of road vibration.
- Strictly for paved roads; not suitable for rough terrain.
Expert Verdict
In-Depth Analysis
Editorial Review: Evaluating theCF Racer1

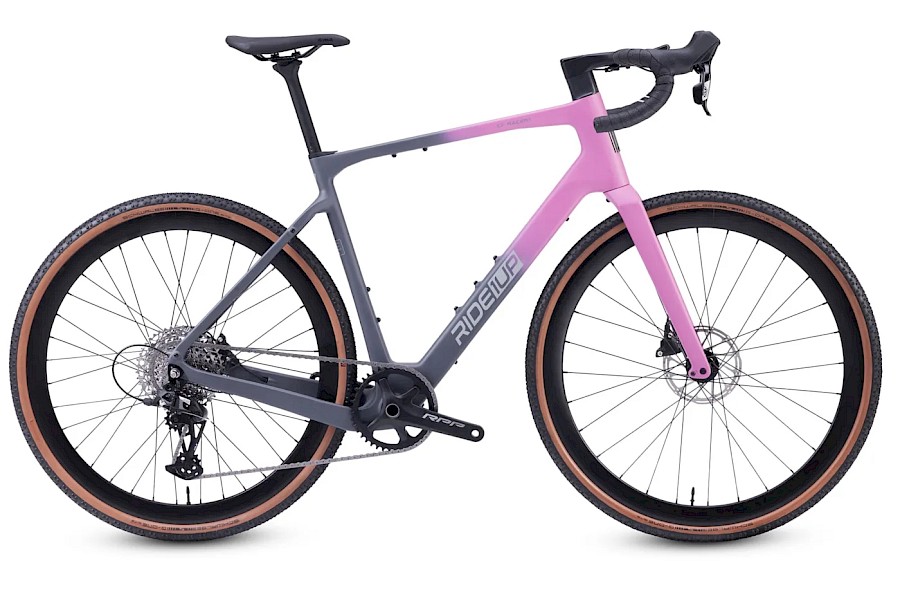

The Ride1Up CF Racer1 is a groundbreaking entry in the performance e-bike space, shattering the myth that carbon fiber drop-bar electric bikes have to cost as much as a used car. Weighing in at an astonishingly light 27 to 28 pounds, it completely blurs the line between traditional acoustic bikes and e-bikes.
Built with a sleek, single-mold carbon fiber frame that entirely conceals its battery and internal routing, it is designed strictly for cyclists who want an authentic, athletic road or gravel riding experience. It skips the throttle entirely to focus on a high-cadence, Class 3 performance that gives you a stealthy "tailwind" on demand rather than doing the work for you.
The Technical Snapshot
The CF Racer1 is unique because Ride1Up sells it in two highly specialized configurations out of the box, but both share the same ultra-light DNA:
- Weight & Frame: Constructed from a TUV-certified, T700 carbon fiber frame and matching rigid carbon fork. The cockpit utilizes a beautifully integrated single-form carbon handlebar and stem unit that routes all cables internally. The Road build weighs 27.4 pounds, while the Gravel build scales in at 28.6 pounds.
- Power & Speed: Equipped with a compact, ultra-quiet 36V 250W sustained geared hub motor putting out 42Nm of torque. Operating as a Class 3 e-bike, it provides smooth, linear pedal assistance up to 28 mph via a highly responsive 5-level cadence sensor.
- Battery & Range: Conceals a lightweight 36V 7Ah (252Wh) Samsung-cell battery inside the downtube, netting a focused real-world range of 16 to 40 miles. For epic centuries, Ride1Up offers an optional plug-and-play 250Wh dual-battery bottle add-on that mounts right into a standard cage.
- Drivetrain & Brakes: Outfitted with premium SRAM componentry (featuring versions with either an 11-speed SRAM Rival 1 or a 12-speed SRAM Apex 1 setup) utilizing a 42T chainring and DoubleTap shifting. Stopping is handled by elite SRAM hydraulic disc brakes clamped onto 160mm rotors.
- The Two Flavor Options:
- The Road Build: Ships with fast-rolling 700x32c Schwalbe E-One road tires and subtle 3-degree flared drop bars meant for tight cornering and pure asphalt speed.
- The Gravel Build: Switches to high-traction 700x40c Continental Terra Trail tubeless-compatible tires (with frame clearance up to 50c) and aggressive 15-degree flared drop bars built for control on loose dirt and fire roads.
Key Specifications
CF Racer1
Performance
- Motor (Nominal)
- 250 W
- Motor (Peak)
- 540 W
- Battery
- 252 Wh
- Battery (Ah)
- 7.0 Ah
- Range
- 40 mi
- Top Speed
- 28 mph
Practicality
- Price
- $2,195
- Weight
- 29 lbs
- Payload Capacity
- 225 lbs
- Foldable
- No
Real-World Range Estimator
Fine-tuned for the 252 Wh Battery
12.6 mi
Motor Type
Terrain Profile
The Science of eBike Range
Estimated range is total usable battery capacity divided by adjusted energy consumption: Range (mi) = Battery (Wh) ÷ Adjusted Consumption (Wh/mi). Manufacturer range claims are measured in ideal lab conditions, so this model starts from a real-world baseline and applies a multiplier for each factor you change above.
The variables
- Baseline: 20 Wh per mile, for a 180 lb rider on flat ground using standard assist with a hub motor. Every adjustment below is a multiplier against that number.
- PAS level: assist is banded rather than linear, because a controller delivers set power steps rather than a smooth ramp. Levels 1–2 draw 30% less energy than standard, level 4 draws 30% more, and level 5 draws 60% more — the jump at the top is steep because aerodynamic drag rises with the square of speed.
- Motor type: mid-drive motors run through the gearing, so they hold a more efficient operating range under load and consume roughly 14% less energy than a hub motor over the same route. Hub motors lose more to heat when they bog down on climbs.
- Rider weight: consumption rises 5% for every full 20 lbs over the 180 lb baseline, reflecting the extra rolling resistance and the energy lost accelerating more mass back up to speed.
- Terrain: a hilly profile adds 30% over flat ground. Regenerative braking recovers very little of what a climb costs, so elevation is close to a straight energy penalty.
This estimate is independent of the Battery & Range score in the rating breakdown, which scores the published specification rather than predicting a single ride. Treat the figure as a planning guide — tyre pressure, wind, temperature and stop-start riding all move the real number.
